DH1325R 2 Heads CNC Router with Rotary

Overview

1.)Frame: Welded Structure, very strong and stable
2.)The international leading DSP control system
3.)The spindle can be automatically replaced, for different processing.

Top Quality Components

1) The machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3). Well-known brands of Water-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine’s failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

Applications

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

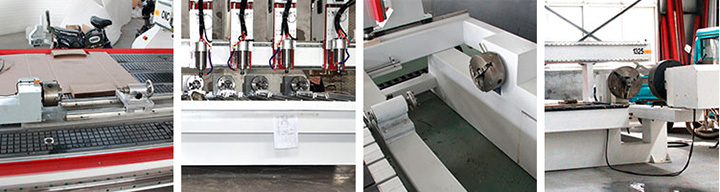

Rotary Option

Materials

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Features

NO.	Description	Parameter
1	X,Y,Z Working Area	1300x2500x200mm
2	Table Size	1360×3640mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	T-slot (Option: Vacuum and T-slot Combined )
6	Frame	Welded Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle) 3.2Kw
10	Max. Rapid Travel Rate	33000mm/min
11	Max. Working Speed	25000mm/min
12	Spindle Power	3.0/4.5/6KW*2pcs
13	Spindle Speed	0-18000RPM
14	Drive Motors	Drive Motors
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
16	Command Language	G Code
17	Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
18	Computer Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER25
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3/UcancameV9 Software (Option: Artcam software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	3500X2000X2150mm
26	N.W.	1300KG
27	G.W.	1450KG
28	Optional Parts	Air Cooling Spindle or Water Cooling Spindle
		Syntec Control System
		Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		850W Yaskawa/800W Panasonic Servo Motors

Video

Machine Schematic

1. Spindle

1.1 Manual Change Spindle


Italian HSD Air Cooling Spindle	Domestic Air Cooling Spindle	Domestic Water Cooling Spindle	Italian Colombo Air Cooling Spindle

1.2. ATC Spindle


Chinese CS ATC Air Cooling Spindle	Italian HSD ATC Air Cooling Spindle	Chinese ATC Water Cooling Spindle	Italian HSD 5axis ATC Water Cooling Spindle	Italian HSD ATC Water Cooling Spindle	Italian Hiteco ATC Air Cooling Spindle

2. Motor


Fuxing Stepper Motor	Taiwan Delta Servo Motor	Japanese Panasonic Servo Motor	Japanese Yaskawa Servo Motor

Japanese Fanuc Servo Motor	France Siemens Servo Motor	Taiwan Apex Reducer	Japanese Shimpo Reducer

3. Control System


Rich Auto DSP Controller	Ncstudio DSP Controller	Ncstudio Software Controller	Mach3 Software Controller

France Siemens Controller	Taiwan Syntec Controller	Japanese Fanuc Controller	Italian Osai Controller

4. Inverter


Fuling Inverter	Taiwan Delta Inverter	Japanese Omron Inverter

Basic Accessories


France Schneider Contactor	France Schneider Main Switch	Japanese Omron 24V Power Supply	Japanese Omron Limit Sensor	Japanese Omron Power Switch

Taiwan HIWIN Square Rails	Taiwan TBI Ball Screw	High Precision Helical Rack Gear 1.25mol	LanPu Transformer	High Quality Auto Lubrication System

Good Quality High-rise Flexible Wire	Hard Rubber Limited	Protect Fuses	Vacuum &T-slot Combined Table	High-quality Belt

Options


Rotary-Removable Type	Rotary-At the End of Machine	Rotary-On the Side of Machine	Germany SCHMLAZ Vacuum Beam	Stainless Steel Water Slot

Linear Tool Magazine	Carrousel Tool Magazine	Tool Sensor System	Water Chiller	Air Compressor

Germany Becker Vacuum Pump	Chinese Water Cooling Pump	TY Air Cooling Pump	Snail Air Cooling Vacuum Pump	Italian HSD Boring Unit

Mist Cooling System	Dust Collector	Hand Wheel	Material Alignment System

Guarantee & After Sales Service

1. The 2 Heads CNC Router with Rotary is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
