3D Projector Scanner
Overview
1. Portable design: Small size, small footprint, no noise, easy to disassembly and installation, very convenient to carry.
2. "One-click" mark all points automatic splicing: Automatic splicing times of scanning data, the process is complete with “one-click”. Without manual intervention, no third party software, to ensure that the data does not appear stratified phenomenon.
3. Non-contact scanning: Measurement without contact with anything, can easily measure the soft, easy to deformation objects; And can be move scanner when scanning large heavy objects, there is no limit to the trip.
4. The noise of the point cloud processing and trim: Can pruning and eliminate noise during scanning and at the end of the scanning. Due to use of high-end industrial lenses and original software de-noising module, can overcome the domestic like product cannot solve noise and floating point problem, save your post-processing and modification time.
5. Standard 3d scanner, its single scanning range is bigger, the corresponding point distance is thin, suitable for decorative pattern delicate degree requirements is not particularly high, under the condition of product is bigger, use with photogrammetric system can be auto vehicle scanning.
Features
|
Product Model |
Standard 3d scanner | |
|
Single scanning range |
400X300 |
200X150 |
|
Single measuring accuracy |
0.015～0.025 | |
|
Scan dot pitch |
0.20 |
0.10 |
|
Object size |
400mm～1500 mm |
100 mm～400 mm |
|
Scanning way |
White light Photo type Non-contact | |
|
Data splicing way |
The world heart automatic splicing | |
|
Camera sensor |
Industrial Camera | |
|
Industrial lens |
3,000,000 pixels×2 | |
|
Grating system |
America DLP digital grating, extrapolation method of multiple frequency phase shift | |
|
Grating light source |
LED cold lights, lifetime 35000 hours | |
|
File format |
ASC;PLY;STL;OBJ;IGES | |
|
Scanning time |
< 5S | |
|
Operation system |
Windows98/NT/2000/XP/Vista/Win7 | |
|
Application |
Vehicle spare parts
Large mold sculpture, etc |
Small and medium sized components such as home appliance, soles, shoe tree, wood carving, etc. |

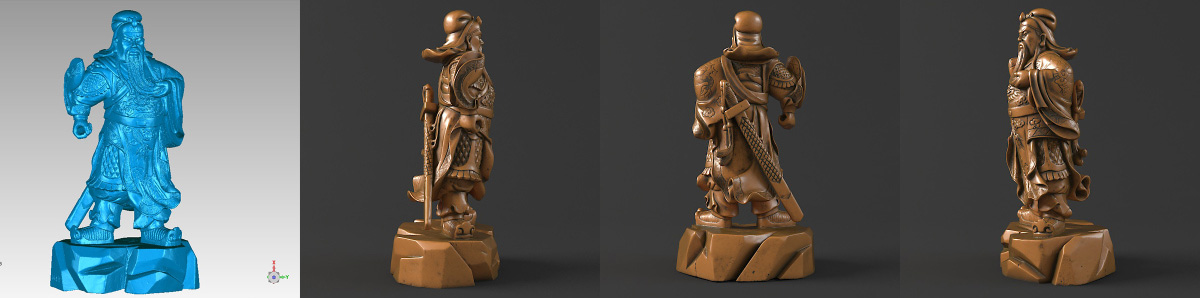

Sample
Video
