4AXIS2030 4 Axis CNC Router Engraver Machine

Overview

4 Axis CNC Router Engraver Machine standard features include an Italian high frequency spindle, the spindle(B axis) can rotate +/- 90 degree, for side slot milling, drilling, cutting, keyhole, very suitable for processing of on different surface carving.

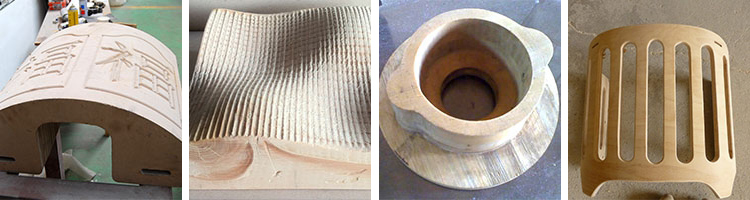

Applications

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Musical Instruments and More.

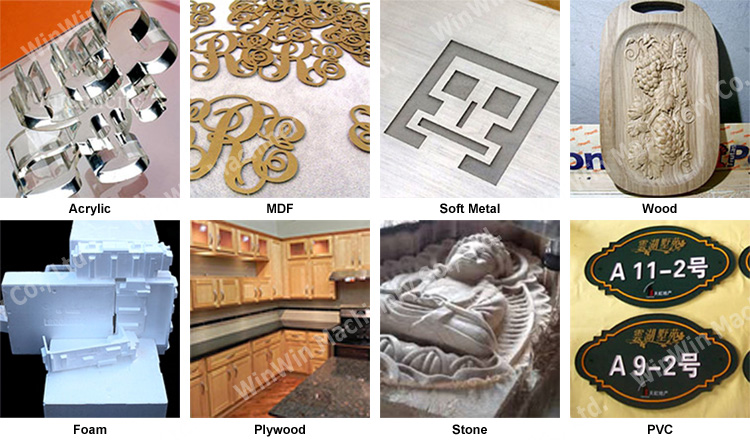

Materials Cut

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Features

4 Axis CNC Router Models	Travelling Area (mm)			Cut Speed (mm/min)	Frame	G.W. (kgs)	Packing Size (mm)
4 Axis CNC Router Models	X	Y	Z	Cut Speed (mm/min)	Frame	G.W. (kgs)	L	W	H
4AXIS1325	1300	2500	400	30000	Welded Steel	2100	3350	2250	2100
4AXIS1530	1500	3000	400	30000	Welded Steel	2250	3700	2250	2100
4AXIS2030	2000	3000	40	30000	Welded Steel	2450	3700	2250	2100
Options	Full range of tables sizes 4’(1300mm) X 6’(2500mm) to 10’(3000mm) X 20’(6000mm)
	Vacuum pumps for easy part fixturing
	Wide range of spindle options 4HP(3KW) to 10HP(7KW)
	Auto positioning rods
	Coolant mist systems for non-ferrous metal cutting
	Rotary for carving cylinder
	Dust collector for collecting clastic during processing to product rails and spindle
	Syntec/ Siemens control system, etc.

Video

Machine Schematic

1. Spindle

1.1 Manual Change Spindle


Italian HSD Air Cooling Spindle	Domestic Air Cooling Spindle	Domestic Water Cooling Spindle	Italian Colombo Air Cooling Spindle

1.2. ATC Spindle


Chinese CS ATC Air Cooling Spindle	Italian HSD ATC Air Cooling Spindle	Chinese ATC Water Cooling Spindle	Italian HSD 5axis ATC Water Cooling Spindle	Italian HSD ATC Water Cooling Spindle	Italian Hiteco ATC Air Cooling Spindle

2. Motor


Fuxing Stepper Motor	Taiwan Delta Servo Motor	Japanese Panasonic Servo Motor	Japanese Yaskawa Servo Motor

Japanese Fanuc Servo Motor	France Siemens Servo Motor	Taiwan Apex Reducer	Japanese Shimpo Reducer

3. Control System


Rich Auto DSP Controller	Ncstudio DSP Controller	Ncstudio Software Controller	Mach3 Software Controller

France Siemens Controller	Taiwan Syntec Controller	Japanese Fanuc Controller	Italian Osai Controller

4. Inverter


Fuling Inverter	Taiwan Delta Inverter	Japanese Omron Inverter

Basic Accessories


France Schneider Contactor	France Schneider Main Switch	Japanese Omron 24V Power Supply	Japanese Omron Limit Sensor	Japanese Omron Power Switch

Taiwan HIWIN Square Rails	Taiwan TBI Ball Screw	High Precision Helical Rack Gear 1.25mol	LanPu Transformer	High Quality Auto Lubrication System

Good Quality High-rise Flexible Wire	Hard Rubber Limited	Protect Fuses	Vacuum &T-slot Combined Table	High-quality Belt

Options


Rotary-Removable Type	Rotary-At the End of Machine	Rotary-On the Side of Machine	Germany SCHMLAZ Vacuum Beam	Stainless Steel Water Slot

Linear Tool Magazine	Carrousel Tool Magazine	Tool Sensor System	Water Chiller	Air Compressor

Germany Becker Vacuum Pump	Chinese Water Cooling Pump	TY Air Cooling Pump	Snail Air Cooling Vacuum Pump	Italian HSD Boring Unit

Mist Cooling System	Dust Collector	Hand Wheel	Material Alignment System

Guarantee & After Sales Service

1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
