LM1290C Laser Cutting Machine
Overview
Advantages
1).The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2).Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
3).LCD control panel in English, convenience of operation control.
4).Import liner bearing with high engraving precision
5).offline control system which can not only work without computer, but also connect to U disk, USB communication
6).Imported metal mirrors, with good ability of reflection and focusing, long working life.
7).Red dot position system realizes the exact position without laser.
8).Auto Focus technology, realize "easy focus & high efficiency" in real, not only a word.
2).Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
3).LCD control panel in English, convenience of operation control.
4).Import liner bearing with high engraving precision
5).offline control system which can not only work without computer, but also connect to U disk, USB communication
6).Imported metal mirrors, with good ability of reflection and focusing, long working life.
7).Red dot position system realizes the exact position without laser.
8).Auto Focus technology, realize "easy focus & high efficiency" in real, not only a word.
Applications
Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry, Vector Cutting, Raster Engraving, Signmaking, etc.
Video

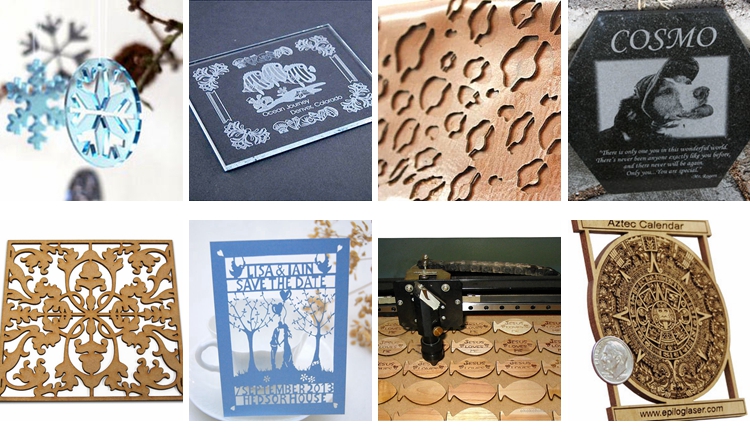

Materials
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass Acrylic, ABS Plastic, Carbon Composite, Cardboard, Cork, Mylar, Plastic and other nonmetal materials.
Performance Parameter
|
Number |
Discription |
Parameter |
| 1 | X,Y Working Size | 1200X900mm |
| 2 | Laser Types | Hermetic And Detached CO2 Laser Tube |
| 3 | Laser Power | 60W,80W,100W, 130W |
| 4 | Engraving Speed | 50-50,000mm(1.97-1970inch)/min |
| 5 | Cutting Speed | 18,000mm(709.2inch)/min |
| 6 | Reposition Accuracy | 0.01mm |
| 7 | Location precision | <0.01mm |
| 8 | Minimum Letter Size | 1.5mm(0.05inch) |
| 9 | Driving system | Stepper |
| 10 | Cooling mode | Water-cooling and protection system |
| 11 | Auxiliary Devices | Exhauster And Exhaust Pipe |
| 12 | Software | Lasercut 5.3 |
| 13 | Voltage | 220V(110V),50/60Hz |
| 14 | Total Power | 1100W |
| 15 | Packing Size(LXWXH) | 1960X1600X1100mm |
| 16 | G.W. | 220KG |
| 17 | Supported Image Form | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
| 18 | Optional | Up&Down work table, Digital display, Rotary Clamp, Red light pointer, Auto focus, water chiller |
Details
Guarantee & After Sales Service
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
